  • Sanyo Semiconductor/onsemi
  • FDB9403-F085
  • Discrete Semiconductor Products

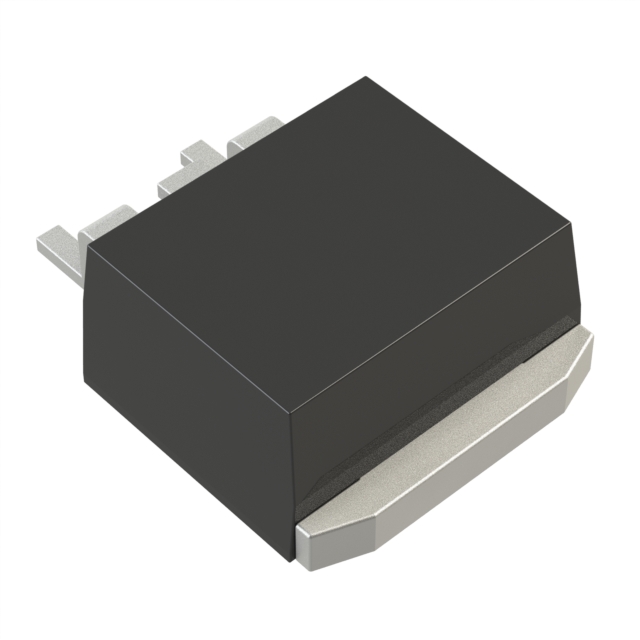

  • MOSFET N-CH 40V 110A TO263AB
  •  FDB9403-F085 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity800
  • DescriptionN-Channel 40 V 110A (Tc) 333W (Tj) Surface Mount TO-263 (D2PAK)
  • Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C110A (Tc)
  • Rds On (Max) @ Id, Vgs1.2mOhm @ 80A, 10V
  • Power Dissipation (Max)333W (Tj)
  • Vgs(th) (Max) @ Id4V @ 250µA
  • Supplier Device PackageTO-263 (D2PAK)
  • GradeAutomotive
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)40 V
  • Gate Charge (Qg) (Max) @ Vgs213 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds12700 pF @ 25 V
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FDB9403-F085 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 31
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
