Sanyo Semiconductor/onsemi

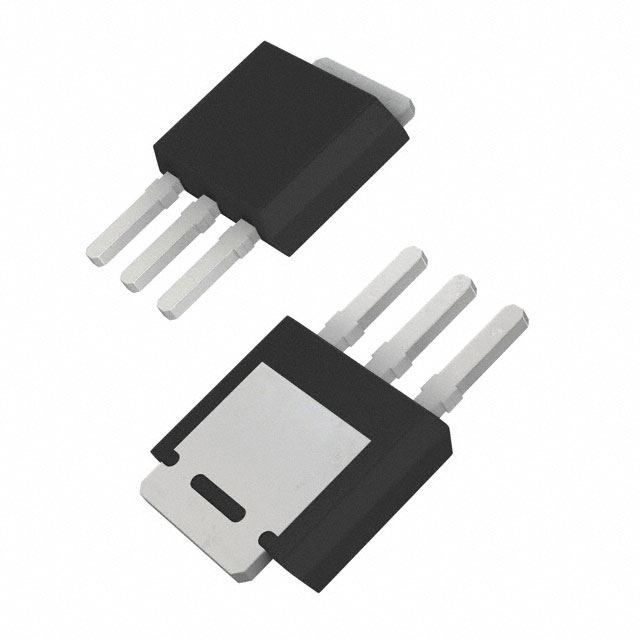

NTD70N03R-1G
Discrete Semiconductor Products
MOSFET N-CH 25V 10A/32A IPAK
NTD70N03R-1G Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerSanyo Semiconductor/onsemi
CategoryDiscrete Semiconductor Products
PackagesTube
Standard Quantity75
DescriptionN-Channel 25 V 10A (Ta), 32A (Tc) 1.36W (Ta), 62.5W (Tc) Through Hole IPAK
Package / CaseTO-251-3 Short Leads, IPAK, TO-251AA
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C10A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs8mOhm @ 20A, 10V
Power Dissipation (Max)1.36W (Ta), 62.5W (Tc)
Vgs(th) (Max) @ Id2V @ 250µA
Supplier Device PackageIPAK
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)25 V
Gate Charge (Qg) (Max) @ Vgs13.2 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds1333 pF @ 20 V
