• STMicroelectronics
• STF32NM50N
• Single FETs, MOSFETs

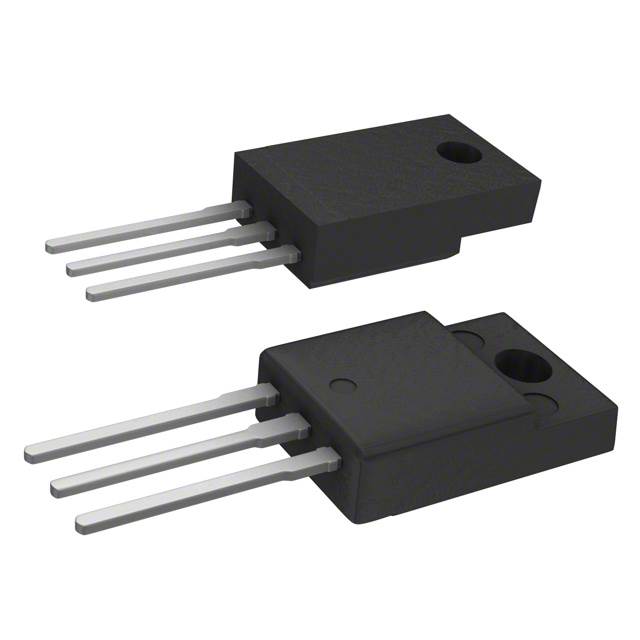

• MOSFET N CH 500V 22A TO-220FP
•  STF32NM50N Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSTMicroelectronics
• CategorySingle FETs, MOSFETs
• PackagesTube
• Standard Quantity50
• DescriptionN-Channel 500 V 22A (Tc) 35W (Tc) Through Hole TO-220FP
• Package / CaseTO-220-3 Full Pack
• Mounting TypeThrough Hole
• Operating Temperature150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C22A (Tc)
• Rds On (Max) @ Id, Vgs130mOhm @ 11A, 10V
• Power Dissipation (Max)35W (Tc)
• Vgs(th) (Max) @ Id4V @ 250μA
• Supplier Device PackageTO-220FP
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±25V
• Drain to Source Voltage (Vdss)500 V
• Gate Charge (Qg) (Max) @ Vgs62.5 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds1973 pF @ 50 V
