  • STMicroelectronics
  • STY60NM50
  • Discrete Semiconductor Products

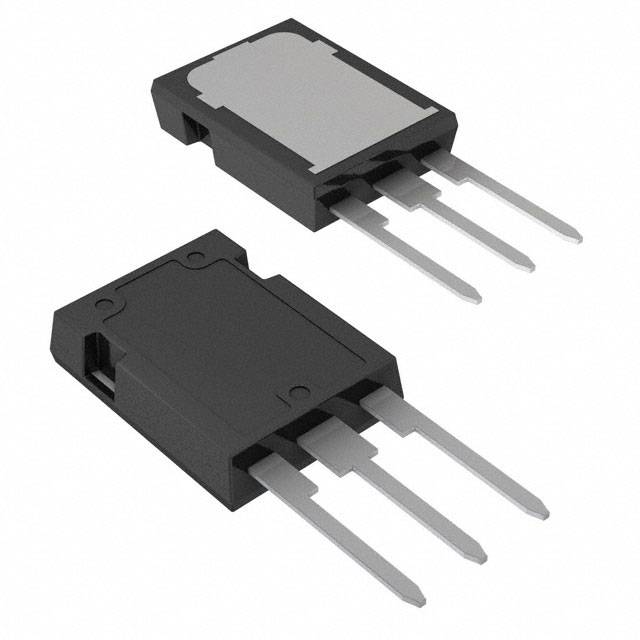

  • MOSFET N-CH 500V 60A MAX247
  •  STY60NM50 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSTMicroelectronics
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionN-Channel 500 V 60A (Tc) 560W (Tc) Through Hole MAX247™
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C60A (Tc)
  • Rds On (Max) @ Id, Vgs50mOhm @ 30A, 10V
  • Power Dissipation (Max)560W (Tc)
  • Vgs(th) (Max) @ Id5V @ 250µA
  • Supplier Device PackageMAX247™
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±30V
  • Drain to Source Voltage (Vdss)500 V
  • Gate Charge (Qg) (Max) @ Vgs266 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds7500 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new STY60NM50 from STMicroelectronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 584
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY
