Product Specifications
  • AttributesAttribute Value
  • ManufacturerTamura
  • CategoryTransformers
  • PackagesTape & Reel (TR)
  • Standard Quantity400

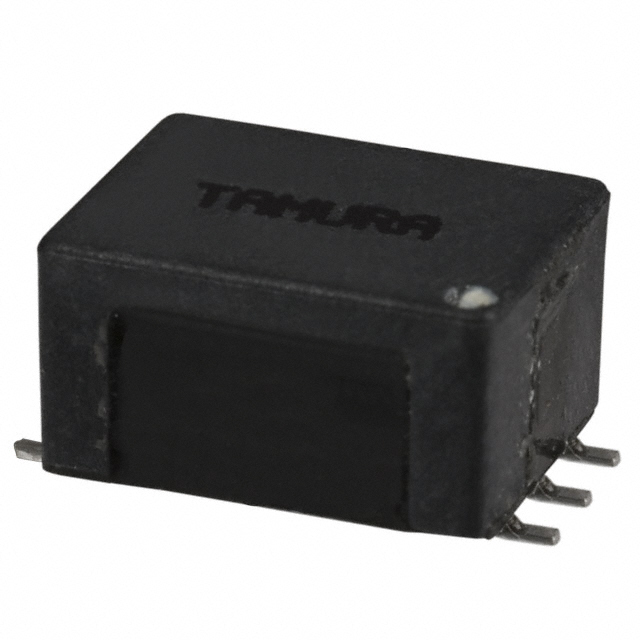

  • Description600 Impedance Primary Ohms 530 Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 4kHz Surface Mount
  • Size / Dimension0.378" L x 0.492" W (9.60mm x 12.50mm)
  • Mounting TypeSurface Mount
  • Operating Temperature-20°C ~ 85°C
  • Termination StyleFlat Lead
  • Transformer TypeData/Voice Coupling
  • Turns Ratio - Primary:Secondary1:1
  • Insertion Loss2dB Max @ 2kHz
  • Frequency Range200Hz ~ 4kHz
  • Voltage - Isolation1875VRMS @ 1 Second
  • Approval AgencyUL60950, EN60950
  • Return Loss18dB Min @ 200Hz ~ 4kHz
  • Height - Seated (Max)0.299" (7.60mm)
  • Impedance - Primary (Ohms)600
  • Impedance - Secondary (Ohms)530
  • DC Resistance (DCR) - Primary90Ohm
  • DC Resistance (DCR) - Secondary90Ohm
  • Frequency Response±0.4dB

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TTC-5037 from Tamura only.
