Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryCommon Mode Chokes
  • PackagesTape & Reel (TR)
  • Standard Quantity2500

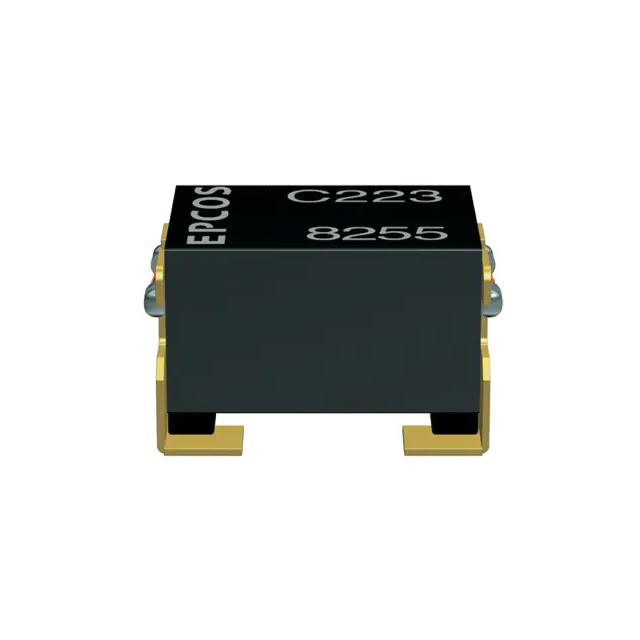

  • Description22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 250mA DCR 580mOhm (Typ)
  • Package / Case4-SMD, J-Lead
  • Filter TypeSignal Line
  • Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Mounting TypeSurface Mount
  • Number of Lines2
  • Operating Temperature-55°C ~ 150°C
  • RatingsAEC-Q200
  • Height (Max)0.118" (3.00mm)
  • Voltage Rating - AC42V
  • Voltage Rating - DC80V
  • Current Rating (Max)250mA
  • DC Resistance (DCR) (Max)580mOhm (Typ)
  • Inductance @ Frequency22 μH @ 100 kHz

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B82789S0223H001 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,498
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
