  • TDK Micronas
  • HAL504SF-A
  • Switches (Solid State)

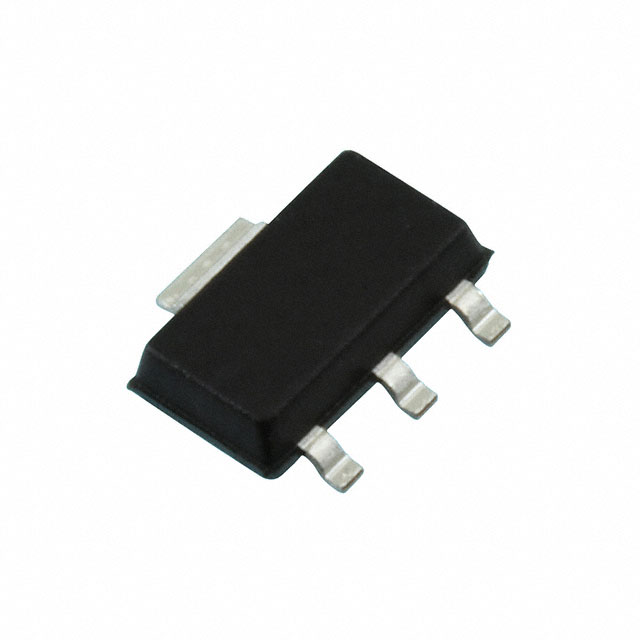

  • MAGNETIC SWITCH UNIPOL SOT89B-1
  •  HAL504SF-A Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Micronas
  • CategorySwitches (Solid State)
  • PackagesTape & Reel (TR)
  • Standard Quantity2000
  • DescriptionDigital Switch Unipolar Switch Open Drain Hall Effect SOT-89B-1
  • FeaturesTemperature Compensated
  • Package / CaseTO-243AA, Variant
  • Output TypeOpen Drain
  • PolarizationSouth Pole
  • Mounting TypeSurface Mount
  • FunctionUnipolar Switch
  • Operating Temperature-40°C ~ 170°C (TJ)
  • Voltage - Supply3.8V ~ 24V
  • TechnologyHall Effect
  • Sensing Range14.5mT Trip, 5mT Release
  • Current - Output (Max)20mA
  • Current - Supply (Max)4.2mA
  • Supplier Device PackageSOT-89B-1
  • Test Condition25°C

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HAL504SF-A from TDK Micronas only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
