  • TE Connectivity AMP Connectors

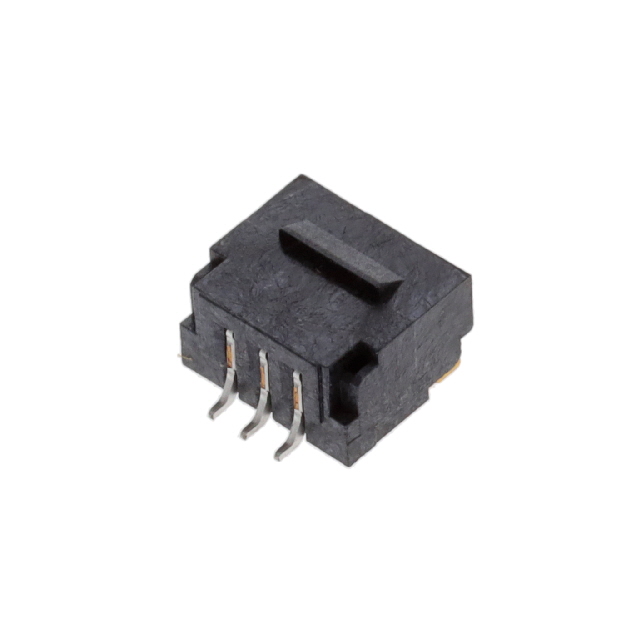

  • 2367196-3
  • Headers, Male Pins
  • 1.0MM WTB RIGHT ANGLE TYPE WITH
  •  2367196-3 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTE Connectivity AMP Connectors
  • CategoryHeaders, Male Pins
  • PackagesTape & Reel (TR)
  • Standard Quantity2100
  • DescriptionConnector Header Surface Mount, Right Angle 3 position 0.039" (1.00mm)
  • FeaturesPick and Place, Solder Retention
  • Connector TypeHeader
  • Voltage Rating50V
  • Current Rating (Amps)2A
  • Mounting TypeSurface Mount, Right Angle
  • Number of Positions3
  • Number of Rows1
  • StyleBoard to Cable/Wire
  • Operating Temperature-40°C ~ 85°C
  • Contact TypeMale Pin
  • Fastening TypeLocking Ramp
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialCopper Alloy
  • Insulation ColorBlack
  • Pitch - Mating0.039" (1.00mm)
  • Contact Finish - MatingTin
  • Contact Finish Thickness - Mating5.00μin (0.127μm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post50.0μin (1.27μm)
  • Contact ShapeRectangular
  • Insulation Height0.114" (2.90mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialThermoplastic, Halogen Free
  • Contact Length - Mating0.087" (2.21mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2367196-3 from TE Connectivity AMP Connectors only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,294
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
