  • TE Connectivity AMP Connectors

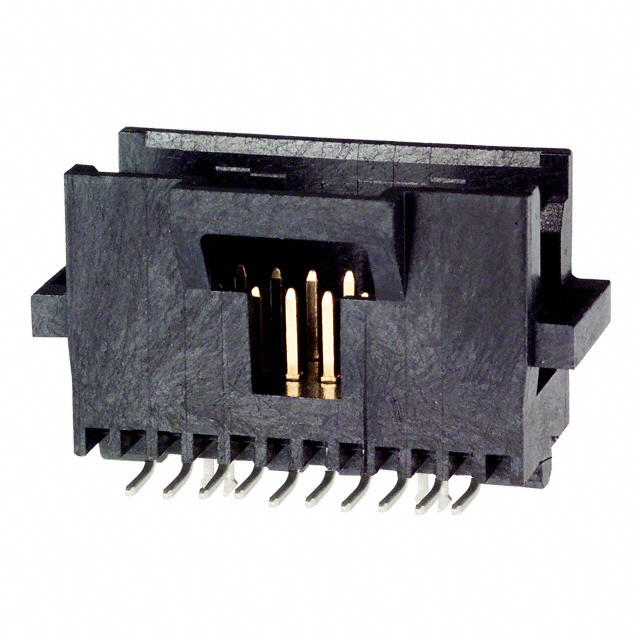

  • 5-104549-2
  • Headers, Male Pins
  • CONN HEADER SMD 20POS 1.27MM
  •  5-104549-2 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTE Connectivity AMP Connectors
  • CategoryHeaders, Male Pins
  • PackagesBulk
  • Standard Quantity27
  • DescriptionConnector Header Surface Mount 20 position 0.050" (1.27mm)
  • FeaturesBoard Lock
  • Connector TypeHeader
  • Voltage Rating30VAC
  • Mounting TypeSurface Mount
  • Number of Positions20
  • Number of Rows2
  • StyleBoard to Board or Cable
  • Operating Temperature-65°C ~ 105°C
  • ApplicationsAutomotive, General Purpose, Medical, Telecommunications
  • Contact TypeMale Pin
  • Fastening TypeLatch Holder
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialCopper Alloy
  • Insulation ColorBlack
  • Pitch - Mating0.050" (1.27mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating30.0μin (0.76μm)
  • Contact Finish - PostTin
  • Contact Finish Thickness - Post150.0μin (3.81μm)
  • Contact ShapeCircular
  • Insulation Height0.435" (11.05mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialPolyphthalamide (PPA)
  • Row Spacing - Mating0.100" (2.54mm)
  • Contact Length - Mating0.125" (3.18mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 5-104549-2 from TE Connectivity AMP Connectors only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,883
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
