Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryGates and Inverters
  • PackagesTube
  • Standard Quantity1

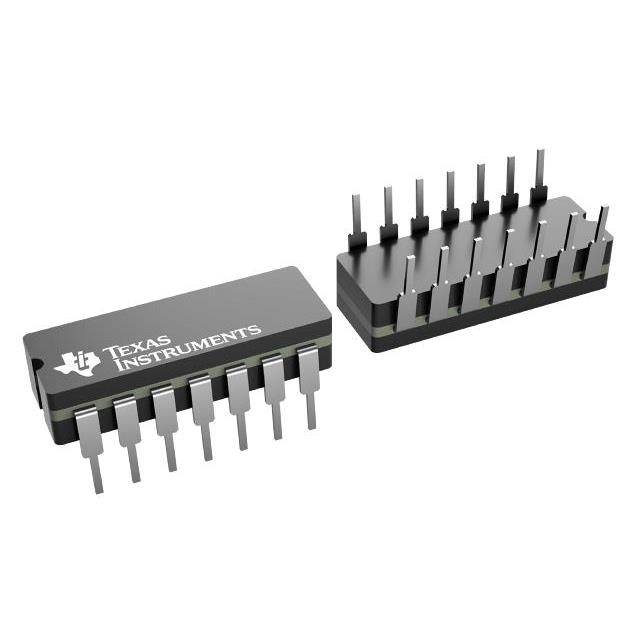

  • DescriptionXOR (Exclusive OR) IC 4 Channel Open Collector 14-CDIP
  • FeaturesOpen Collector
  • Package / Case14-CDIP (0.300", 7.62mm)
  • Mounting TypeThrough Hole
  • Logic TypeXOR (Exclusive OR)
  • Operating Temperature-55°C ~ 125°C
  • Voltage - Supply4.5V ~ 5.5V
  • Current - Output High, Low-, 4mA
  • Number of Inputs2
  • Supplier Device Package14-CDIP
  • Input Logic Level - High2V
  • Input Logic Level - Low0.7V
  • Max Propagation Delay @ V, Max CL30ns @ 5V, 15pF
  • Number of Circuits4
  • Current - Quiescent (Max)10 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SNJ54LS136J from Texas Instruments only.
