  • Texas Instruments
  • SN74LS38DR
  • Integrated Circuits (ICs)
  • IC GATE NAND 4CH 2-INP 14SOIC
  •  SN74LS38DR Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionNAND Gate IC 4 Channel Open Collector 14-SOIC
  • FeaturesOpen Collector

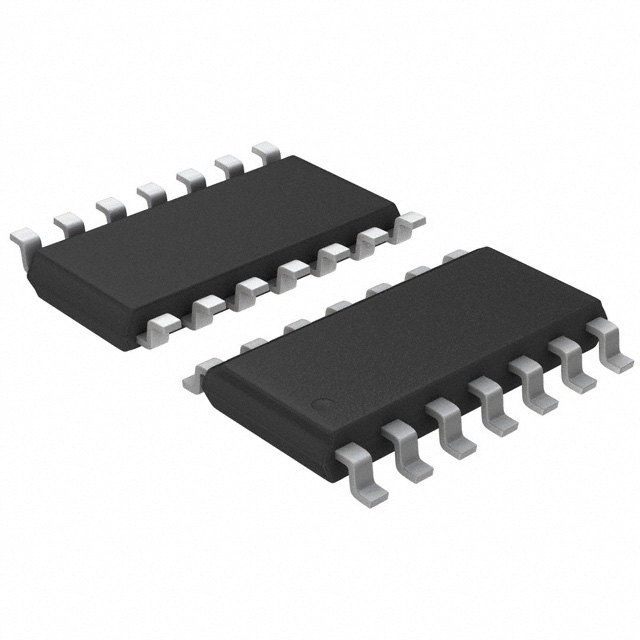

  • Package / Case14-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • Logic TypeNAND Gate
  • Operating Temperature0°C ~ 70°C
  • Voltage - Supply4.75V ~ 5.25V
  • Current - Output High, Low-, 24mA
  • Number of Inputs2
  • Supplier Device Package14-SOIC
  • Input Logic Level - High2V
  • Input Logic Level - Low0.8V
  • Max Propagation Delay @ V, Max CL32ns @ 5V, 45pF
  • Number of Circuits4
  • Current - Quiescent (Max)2 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SN74LS38DR from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 506
Please send an RFQ for instant price and inventory.
