  • Texas Instruments

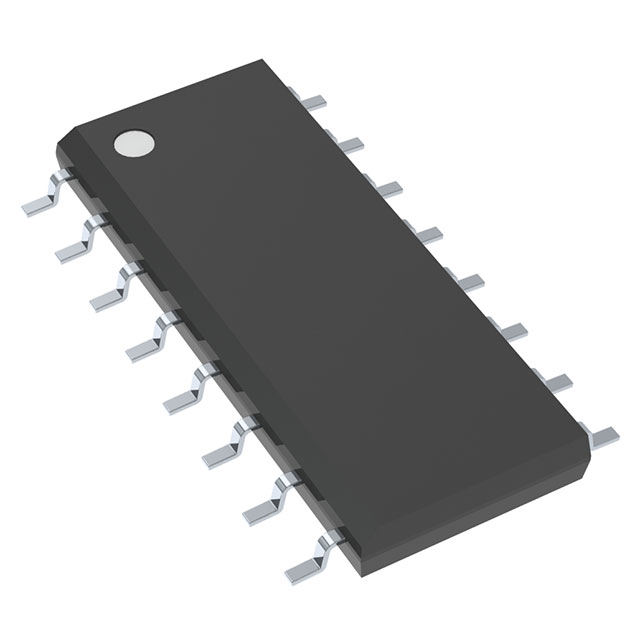

  • TLC7524ED
  • Integrated Circuits (ICs)
  • IC DAC 8BIT A-OUT 16SOIC
  •  TLC7524ED Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity40
  • Description8 Bit Digital to Analog Converter 1 16-SOIC
  • Package / Case16-SOIC (0.154", 3.90mm Width)
  • Output TypeCurrent - Unbuffered
  • Mounting TypeSurface Mount
  • Number of Bits8
  • Data InterfaceParallel
  • Reference TypeExternal
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply, Analog5V, 14.5V ~ 15.5V
  • Voltage - Supply, Digital5V, 14.5V ~ 15.5V
  • Settling Time100ns
  • Supplier Device Package16-SOIC
  • ArchitectureR-2R
  • Number of D/A Converters1
  • INL/DNL (LSB)±0.5 (Max), ±2.5 (Max)
  • Differential OutputYes
  • DigiKey ProgrammableNot Verified

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TLC7524ED from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 68
Please send an RFQ for instant price and inventory.
