  • Texas Instruments
  • SN7432NE4
  • Integrated Circuits (ICs)

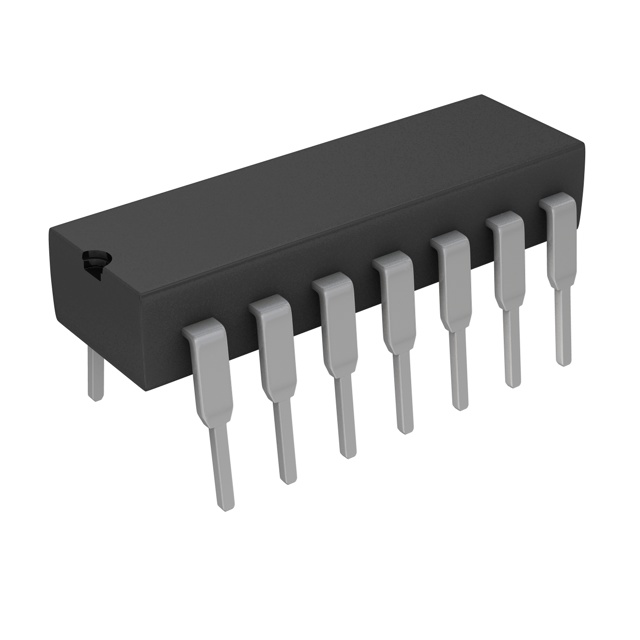

  • IC GATE OR 4CH 2-INP 14DIP
  •  SN7432NE4 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity25
  • DescriptionOR Gate IC 4 Channel 14-PDIP
  • Package / Case14-DIP (0.300", 7.62mm)
  • Mounting TypeThrough Hole
  • Logic TypeOR Gate
  • Operating Temperature0°C ~ 70°C
  • Voltage - Supply4.75V ~ 5.25V
  • Current - Output High, Low800µA, 16mA
  • Number of Inputs2
  • Supplier Device Package14-PDIP
  • Input Logic Level - High2V
  • Input Logic Level - Low0.8V
  • Max Propagation Delay @ V, Max CL22ns @ 5V, 15pF
  • Number of Circuits4
  • Current - Quiescent (Max)38 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SN7432NE4 from Texas Instruments only.
