  • Texas Instruments

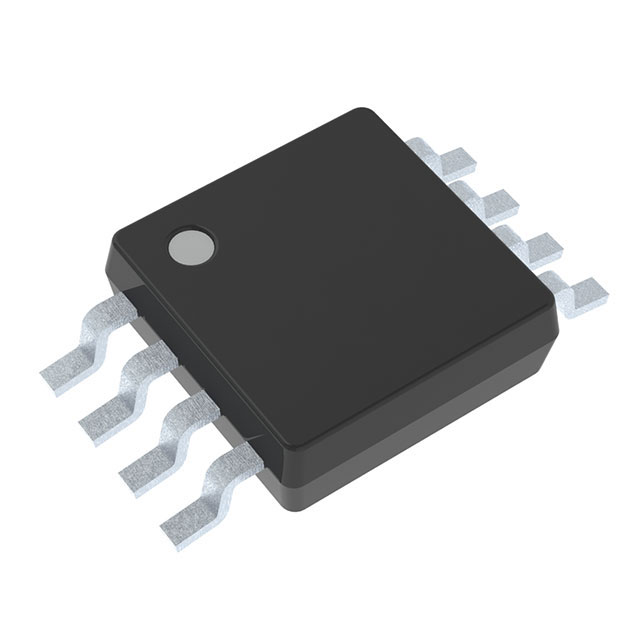

  • UCC3809P-1G4
  • AC DC Converters, Offline Switches
  • IC REG CTRLR PWM CM 8VSSOP
  •  UCC3809P-1G4 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryAC DC Converters, Offline Switches
  • PackagesTube
  • Standard Quantity80
  • DescriptionConverter Offline Boost, Buck, Flyback, Forward Topology 1MHz 8-VSSOP
  • Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Duty Cycle70%
  • Frequency - Switching1MHz
  • Internal Switch(s)No
  • Output IsolationIsolated
  • TopologyBoost, Buck, Flyback, Forward
  • Voltage - Supply (Vcc/Vdd)8V ~ 19V
  • Supplier Device Package8-VSSOP
  • Voltage - Start Up15 V
  • Control FeaturesFrequency Control, Soft Start

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new UCC3809P-1G4 from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 11,460
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
