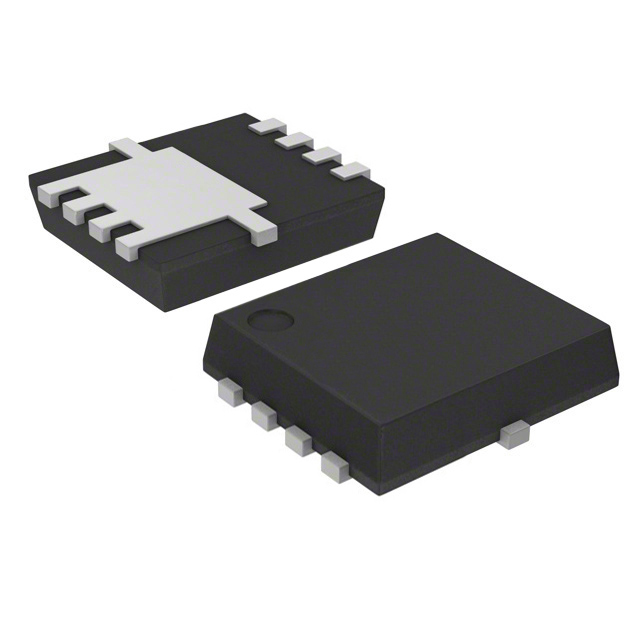

• TPN2R503NC,L1Q
• Discrete Semiconductor Products
• MOSFET N CH 30V 40A 8TSON-ADV
•  TPN2R503NC,L1Q Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerToshiba Electronic Devices and Storage Corporation
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity5000
• DescriptionN-Channel 30 V 40A (Ta) 700mW (Ta), 35W (Tc) Surface Mount 8-TSON Advance (3.1x3.1)
• Package / Case8-PowerVDFN
• Mounting TypeSurface Mount
• Operating Temperature150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C40A (Ta)
• Rds On (Max) @ Id, Vgs2.5mOhm @ 20A, 10V
• Power Dissipation (Max)700mW (Ta), 35W (Tc)
• Vgs(th) (Max) @ Id2.3V @ 500µA
• Supplier Device Package8-TSON Advance (3.1x3.1)
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds2230 pF @ 15 V
