  • Toshiba Electronic Devices and Storage Corporation
  • SSM5N15FE(TE85L,F)
  • Discrete Semiconductor Products
  • MOSFET N-CH 30V 100MA ESV
  •  SSM5N15FE(TE85L,F) Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerToshiba Electronic Devices and Storage Corporation
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity4000
  • DescriptionN-Channel 30 V 100mA (Ta) 150mW (Ta) Surface Mount ESV

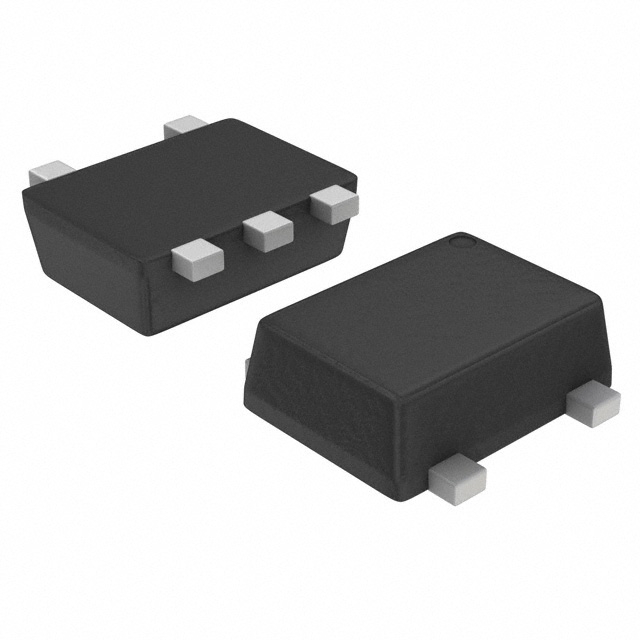

  • Package / CaseSOT-553
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C100mA (Ta)
  • Rds On (Max) @ Id, Vgs4Ohm @ 10mA, 4V
  • Power Dissipation (Max)150mW (Ta)
  • Vgs(th) (Max) @ Id1.5V @ 100µA
  • Supplier Device PackageESV
  • Drive Voltage (Max Rds On, Min Rds On)2.5V, 4V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)30 V
  • Input Capacitance (Ciss) (Max) @ Vds7.8 pF @ 3 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SSM5N15FE(TE85L,F) from Toshiba Electronic Devices and Storage Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,665
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
