TSC (Taiwan Semiconductor)

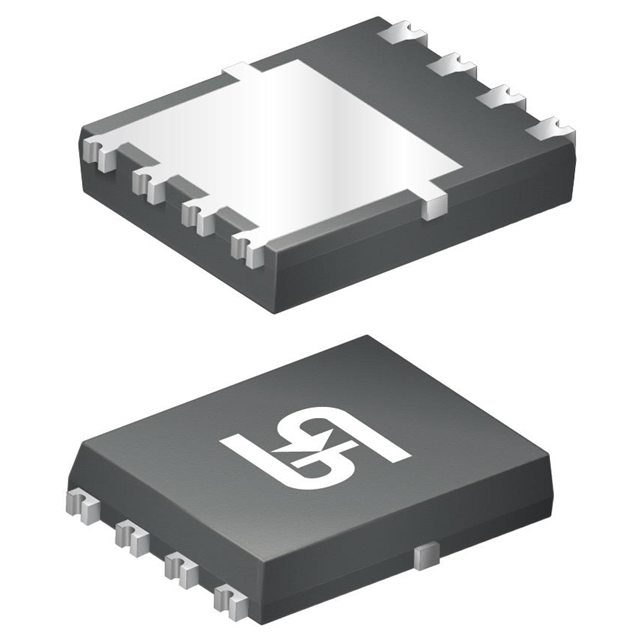

TSM056NH04CR RLG
Single FETs, MOSFETs
40V, 54A, SINGLE N-CHANNEL POWER
TSM056NH04CR RLG Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerTSC (Taiwan Semiconductor)
CategorySingle FETs, MOSFETs
PackagesTape & Reel (TR)
Standard Quantity5000
DescriptionN-Channel 40 V 18A (Ta), 54A (Tc) 78.9W (Tc) Surface Mount 8-PDFNU (5x6)
Package / Case8-PowerTDFN
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C18A (Ta), 54A (Tc)
Rds On (Max) @ Id, Vgs5.6mOhm @ 27A, 10V
Power Dissipation (Max)78.9W (Tc)
Vgs(th) (Max) @ Id3.6V @ 250μA
Supplier Device Package8-PDFNU (5x6)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)40 V
Gate Charge (Qg) (Max) @ Vgs27.3 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds1942 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TSM056NH04CR RLG from TSC (Taiwan Semiconductor) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 5,000

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
