Product Specifications
  • AttributesAttribute Value
  • ManufacturerUMW
  • CategorySingle FETs, MOSFETs
  • PackagesTape & Reel (TR)
  • Standard Quantity3000

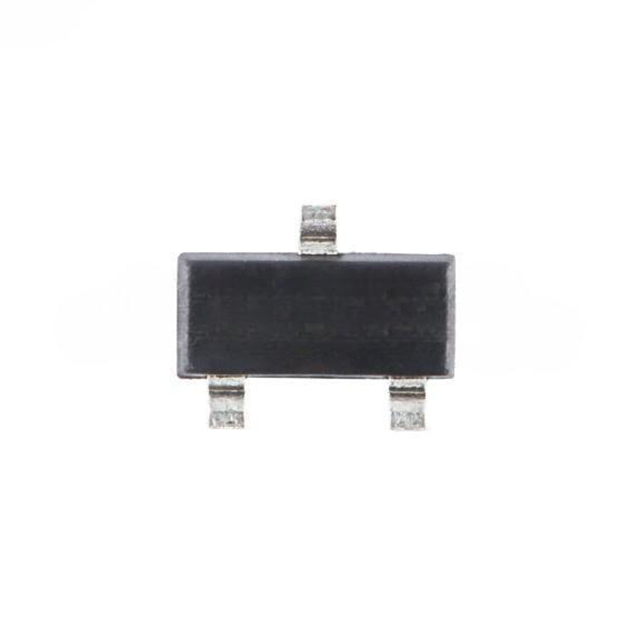

  • DescriptionP-Channel 20 V 2A (Ta) 1.4W (Ta) Surface Mount SOT-23-3L
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C2A (Ta)
  • Rds On (Max) @ Id, Vgs120mOhm @ 2.5A, 4.5V
  • Power Dissipation (Max)1.4W (Ta)
  • Vgs(th) (Max) @ Id1V @ 250μA
  • Supplier Device PackageSOT-23-3L
  • Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
  • Vgs (Max)±12V
  • Drain to Source Voltage (Vdss)20 V
  • Gate Charge (Qg) (Max) @ Vgs3.2 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds325 pF @ 4.5 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AO3423A from UMW only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,905
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
