• Vishay / Siliconix

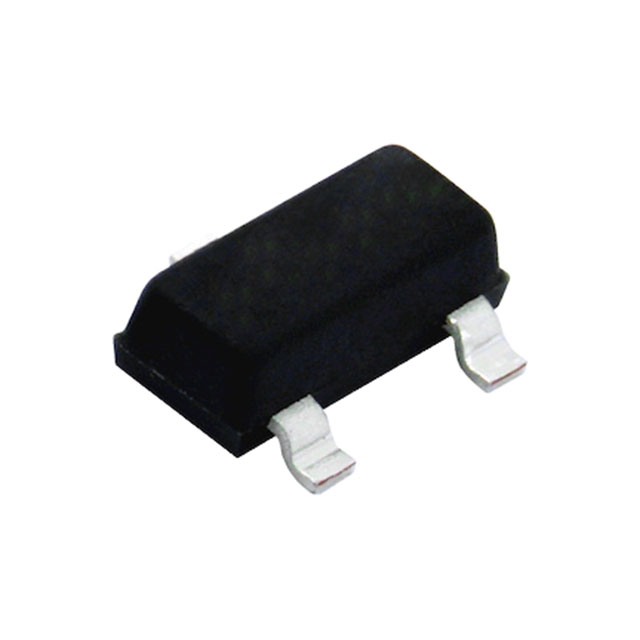

• SI2399DS-T1-BE3
• Discrete Semiconductor Products
• P-CHANNEL 20-V (D-S) MOSFET
•  SI2399DS-T1-BE3 Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerVishay / Siliconix
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionP-Channel 20 V 5.1A (Ta), 6A (Tc) 1.25W (Ta), 2.5W (Tc) Surface Mount SOT-23-3 (TO-236)
• Package / CaseTO-236-3, SC-59, SOT-23-3
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeP-Channel
• Current - Continuous Drain (Id) @ 25°C5.1A (Ta), 6A (Tc)
• Rds On (Max) @ Id, Vgs34mOhm @ 5.1A, 10V
• Power Dissipation (Max)1.25W (Ta), 2.5W (Tc)
• Vgs(th) (Max) @ Id1.5V @ 250µA
• Supplier Device PackageSOT-23-3 (TO-236)
• Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
• Vgs (Max)±12V
• Drain to Source Voltage (Vdss)20 V
• Gate Charge (Qg) (Max) @ Vgs20 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds835 pF @ 10 V
