• Vishay / Siliconix
• IRF820ALPBF
• Discrete Semiconductor Products

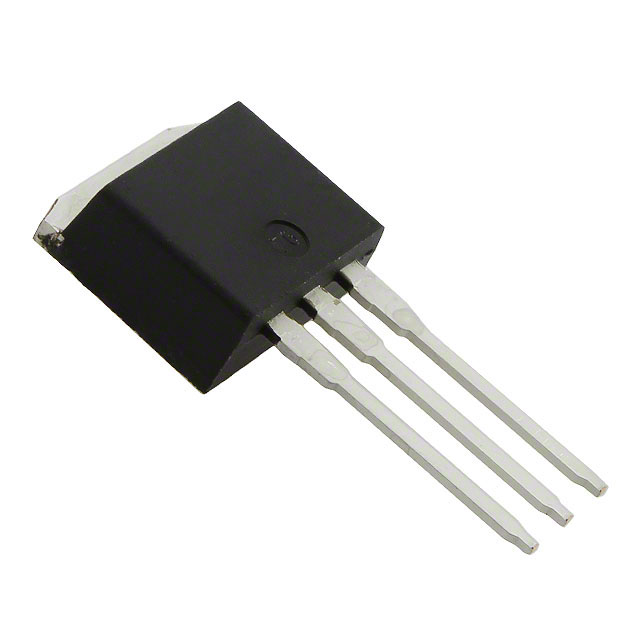

• MOSFET N-CH 500V 2.5A I2PAK
•  IRF820ALPBF Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerVishay / Siliconix
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity1000
• DescriptionN-Channel 500 V 2.5A (Tc) 50W (Tc) Through Hole I2PAK
• Package / CaseTO-262-3 Long Leads, I2PAK, TO-262AA
• Mounting TypeThrough Hole
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C2.5A (Tc)
• Rds On (Max) @ Id, Vgs3Ohm @ 1.5A, 10V
• Power Dissipation (Max)50W (Tc)
• Vgs(th) (Max) @ Id4.5V @ 250µA
• Supplier Device PackageI2PAK
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±30V
• Drain to Source Voltage (Vdss)500 V
• Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds340 pF @ 25 V
