ATIGGBL22580-100 YIC Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

YIC

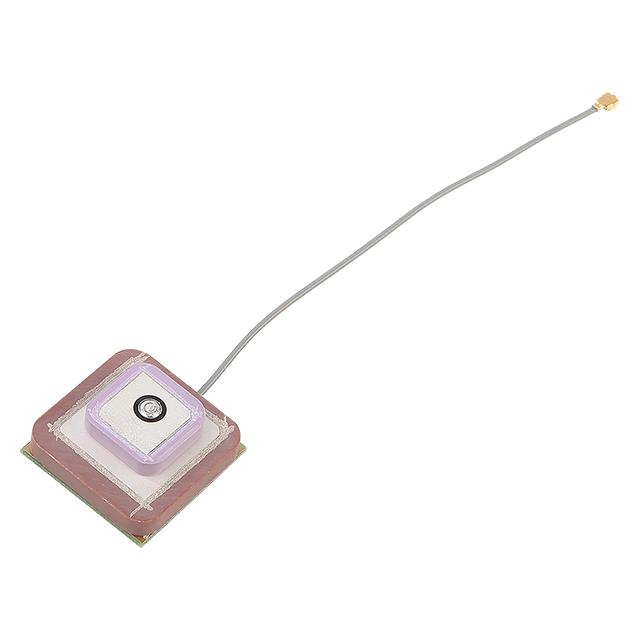

ATIGGBL22580-100
RF Antennas
RF ANT GPS L1+L2/GLONASS/BEIDOU
ATIGGBL22580-100 Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerYIC
CategoryRF Antennas
PackagesTray
Standard Quantity30
Description1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz 2.11dBi, 2.19dBi, -0.3dBi, -0.2dBi, 0.47dBi, 0.7dBi, 3.18dBi, 3.09dBi IPEX Magnetic
FeaturesCable - 100mm, LNA, Filter
Mounting TypeMagnetic
Frequency Range1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz
ApplicationsBeidou, Galileo, GLONASS, GNSS, GPS
Gain2.11dBi, 2.19dBi, -0.3dBi, -0.2dBi, 0.47dBi, 0.7dBi, 3.18dBi, 3.09dBi
TerminationIPEX
Number of Bands4
VSWR2
Antenna TypeCeramic Patch
Height (Max)0.157" (4.00mm)
Return Loss-4.66dB, -18.28dB, -21.45dB, -30.8dB
Frequency GroupUHF (1GHz ~ 2GHz)
Frequency (Center/Band)1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz
RF Family/StandardNavigation

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ATIGGBL22580-100 from YIC only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 123

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
