  • Zetex Semiconductors (Diodes Inc.)

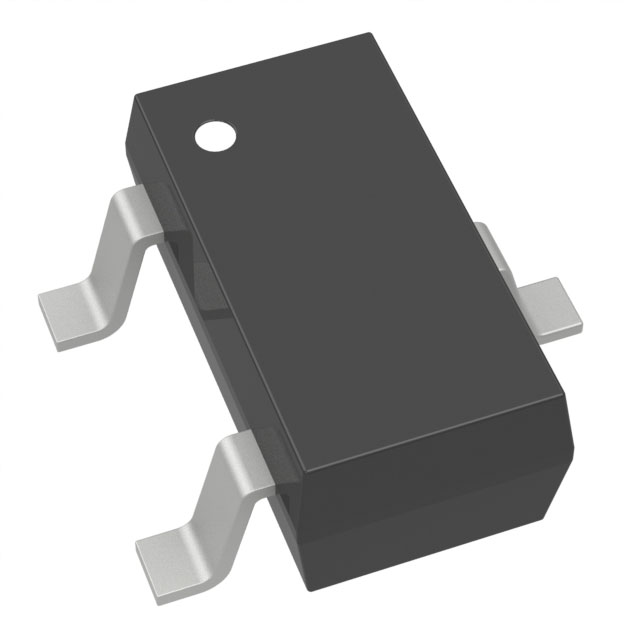

  • AH3761-WG-7
  • Switches (Solid State)
  • MAGNETIC SWITCH LATCH SC59-3
  •  AH3761-WG-7 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerZetex Semiconductors (Diodes Inc.)
  • CategorySwitches (Solid State)
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionDigital Switch Latch Open Drain Hall Effect SC-59-3
  • FeaturesTemperature Compensated
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Output TypeOpen Drain
  • PolarizationSouth Pole
  • Mounting TypeSurface Mount
  • FunctionLatch
  • Operating Temperature-40°C ~ 125°C (TA)
  • Voltage - Supply3V ~ 28V
  • TechnologyHall Effect
  • Sensing Range6mT Trip, -6mT Release
  • Current - Output (Max)100mA
  • Current - Supply (Max)6mA
  • Supplier Device PackageSC-59-3
  • Test Condition25°C

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AH3761-WG-7 from Zetex Semiconductors (Diodes Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 28,850
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
