  • Zetex Semiconductors (Diodes Inc.)

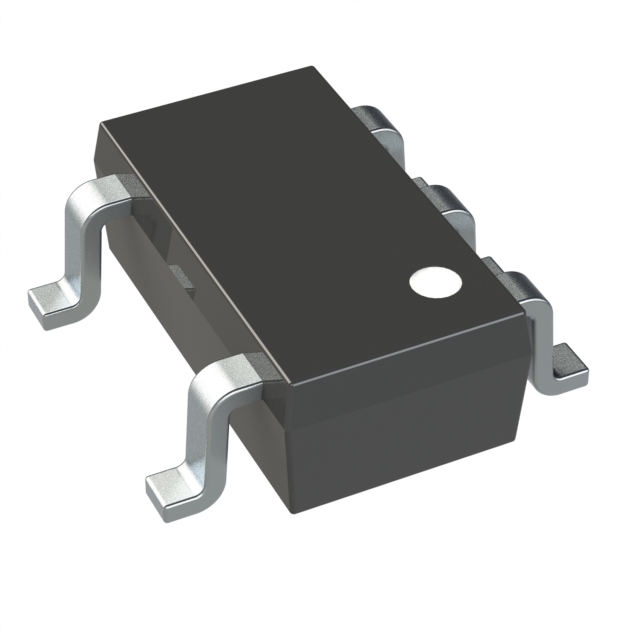

  • AH3966-WT-7
  • Switches (Solid State)
  • HALL LATCH SWITCH TSOT25 T&R 3K
  •  AH3966-WT-7 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerZetex Semiconductors (Diodes Inc.)
  • CategorySwitches (Solid State)
  • PackagesBulk
  • Standard Quantity3000
  • DescriptionDigital Switch Latch, Dual Open Drain Hall Effect TSOT-25 (Type A1)
  • FeaturesTemperature Compensated
  • Package / CaseSOT-23-5 Thin, TSOT-23-5
  • Output TypeOpen Drain
  • PolarizationNorth Pole, South Pole
  • Mounting TypeSurface Mount
  • FunctionLatch, Dual
  • Operating Temperature-40°C ~ 125°C
  • Voltage - Supply2.7V ~ 27V
  • TechnologyHall Effect
  • Sensing Range4.2mT Trip, -4.2mT Release
  • Current - Output (Max)44mA
  • Current - Supply (Max)7mA
  • Supplier Device PackageTSOT-25 (Type A1)
  • Test Condition-40°C ~ 125°C

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AH3966-WT-7 from Zetex Semiconductors (Diodes Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 3,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
