• Zetex Semiconductors (Diodes Inc.)
• DMC3060LVTQ-7
• FET, MOSFET Arrays

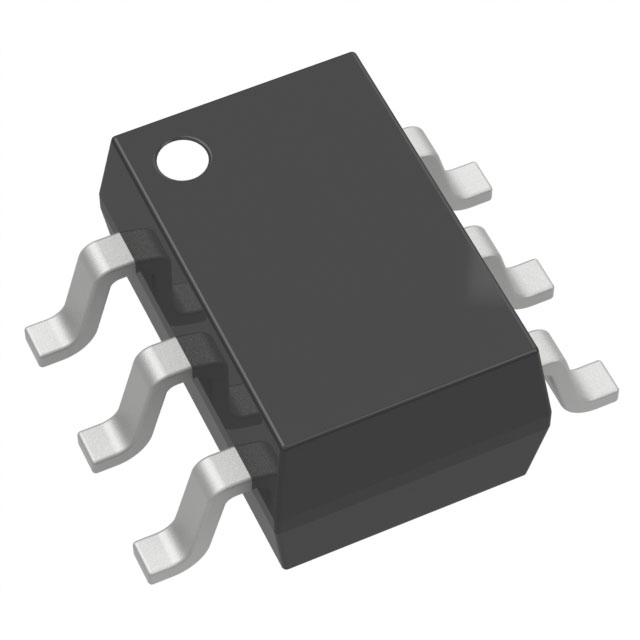

• MOSFET N/P-CH 30V 3.6A TSOT26
•  DMC3060LVTQ-7 Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerZetex Semiconductors (Diodes Inc.)
• CategoryFET, MOSFET Arrays
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionMosfet Array 30V 3.6A (Ta), 2.8A (Ta) 830mW (Ta) Surface Mount TSOT-26
• Package / CaseSOT-23-6 Thin, TSOT-23-6
• Mounting TypeSurface Mount
• ConfigurationN and P-Channel
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• Power - Max830mW (Ta)
• Drain to Source Voltage (Vdss)30V
• Current - Continuous Drain (Id) @ 25°C3.6A (Ta), 2.8A (Ta)
• Input Capacitance (Ciss) (Max) @ Vds395pF @ 15V, 324pF @ 15V
• Rds On (Max) @ Id, Vgs60mOhm @ 3.1A, 10V, 95mOhm @ 2.7A, 10V
• Gate Charge (Qg) (Max) @ Vgs11.3nC @ 10V, 8.6nC @ 10V
• Vgs(th) (Max) @ Id1.8V @ 250μA, 2.1V @ 250μA
• Supplier Device PackageTSOT-26
• GradeAutomotive
• QualificationAEC-Q101
