• Zetex Semiconductors (Diodes Inc.)

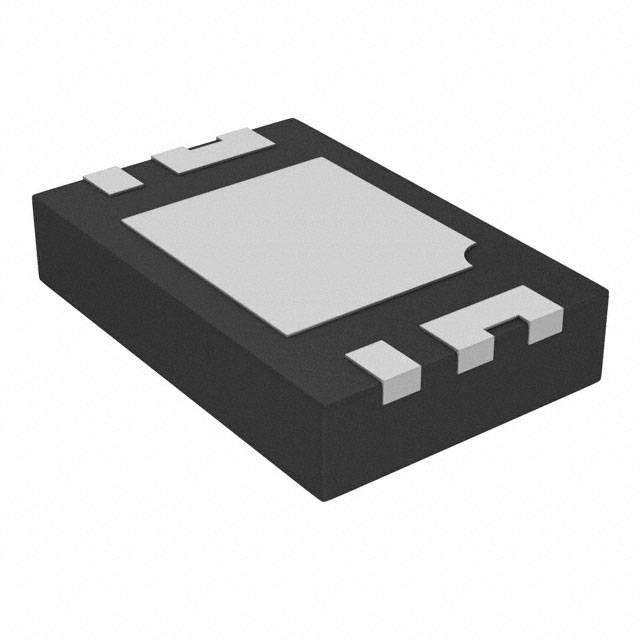

• DMN2024UFU-7
• FET, MOSFET Arrays
• MOSFET 2N-CH 20V 7.5A/21A 6UDFN
•  DMN2024UFU-7 Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerZetex Semiconductors (Diodes Inc.)
• CategoryFET, MOSFET Arrays
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionMosfet Array 20V 7.5A (Ta), 21A (Tc) 810mW (Ta) Surface Mount U-DFN2030-6 (Type B)
• Package / Case6-UFDFN Exposed Pad
• Mounting TypeSurface Mount
• Configuration2 N-Channel (Dual) Common Drain
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• Power - Max810mW (Ta)
• Drain to Source Voltage (Vdss)20V
• Current - Continuous Drain (Id) @ 25°C7.5A (Ta), 21A (Tc)
• Input Capacitance (Ciss) (Max) @ Vds647pF @ 10V
• Rds On (Max) @ Id, Vgs20.2mOhm @ 6.5A, 4.5V
• Gate Charge (Qg) (Max) @ Vgs14.8nC @ 10V
• Vgs(th) (Max) @ Id950mV @ 250μA
• Supplier Device PackageU-DFN2030-6 (Type B)
