• Zetex Semiconductors (Diodes Inc.)
• DMT15H035SCT
• Single FETs, MOSFETs
• MOSFET BVDSS: 101V~250V TO220AB
•  DMT15H035SCT Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerZetex Semiconductors (Diodes Inc.)
• CategorySingle FETs, MOSFETs
• PackagesBulk
• Standard Quantity50
• DescriptionN-Channel 150 V 46A (Tc) 2.2W (Ta) Through Hole TO-220-3

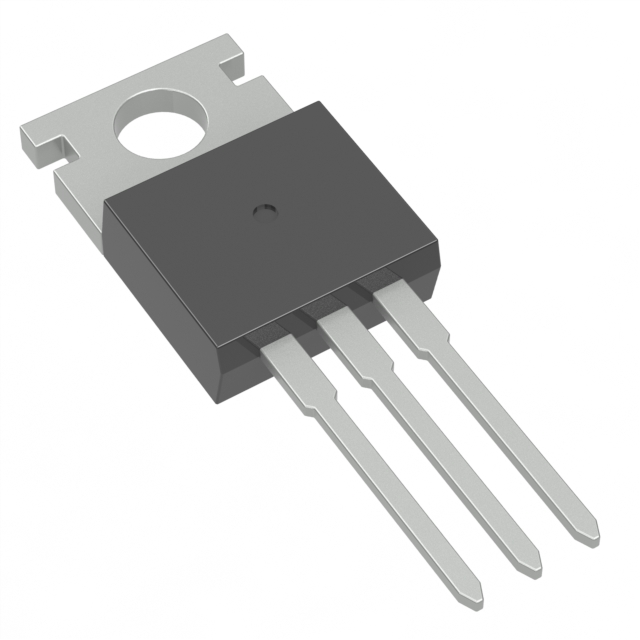

• Package / CaseTO-220-3
• Mounting TypeThrough Hole
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C46A (Tc)
• Rds On (Max) @ Id, Vgs35mOhm @ 20A, 10V
• Power Dissipation (Max)2.2W (Ta)
• Vgs(th) (Max) @ Id4V @ 250μA
• Supplier Device PackageTO-220-3
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)150 V
• Gate Charge (Qg) (Max) @ Vgs25 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds1600 pF @ 75 V
