  • Zetex Semiconductors (Diodes Inc.)
  • SBR05U20SN-7
  • Diode Arrays
  • DIODE ARR SBR 20V 250MA SC59-3
  •  SBR05U20SN-7 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerZetex Semiconductors (Diodes Inc.)
  • CategoryDiode Arrays
  • PackagesTape & Reel (TR)
  • Standard Quantity3000

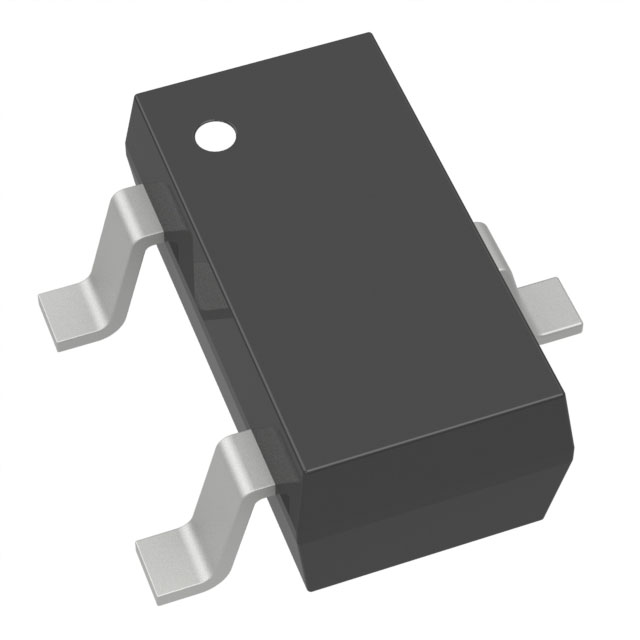

  • DescriptionDiode Array 1 Pair Common Cathode 20 V 250mA Surface Mount TO-236-3, SC-59, SOT-23-3
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • TechnologySuper Barrier
  • Diode Configuration1 Pair Common Cathode
  • Current - Average Rectified (Io) (per Diode)250mA
  • Supplier Device PackageSC-59-3
  • Operating Temperature - Junction-65°C ~ 150°C
  • Voltage - DC Reverse (Vr) (Max)20 V
  • Voltage - Forward (Vf) (Max) @ If560 mV @ 500 mA
  • Current - Reverse Leakage @ Vr100 μA @ 20 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SBR05U20SN-7 from Zetex Semiconductors (Diodes Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
