Product Specifications
  • AttributesAttribute Value
  • ManufacturerNXP Semiconductors
  • CategorySingle FETs, MOSFETs
  • PackagesBulk
  • Standard Quantity1096

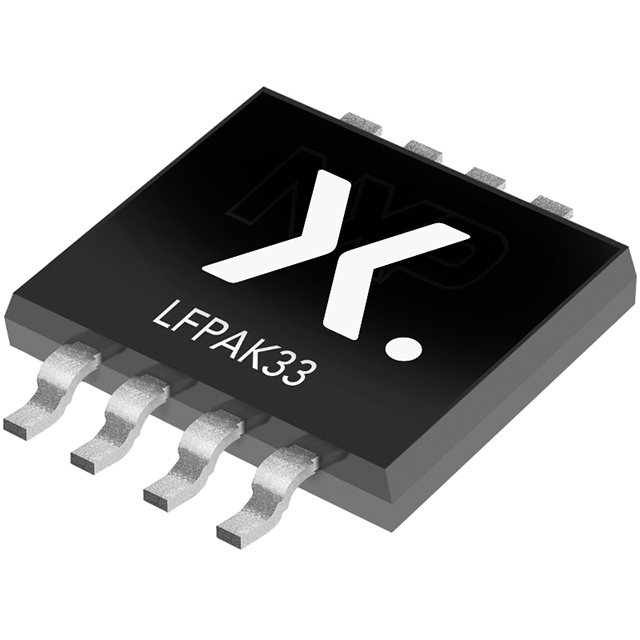

  • DescriptionN-Channel 30 V 70A (Tc) 91W (Tc) Surface Mount LFPAK33
  • Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C70A (Tc)
  • Rds On (Max) @ Id, Vgs2.9mOhm @ 25A, 10V
  • Power Dissipation (Max)91W (Tc)
  • Vgs(th) (Max) @ Id2.15V @ 1mA
  • Supplier Device PackageLFPAK33
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)30 V
  • Gate Charge (Qg) (Max) @ Vgs36.1 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds2419 pF @ 15 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PSMN2R9-30MLC,115 from NXP Semiconductors only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,500
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
