• Sanyo Semiconductor/onsemi
• FDMC8026S
• Single FETs, MOSFETs
• MOSFET N-CH 30V 19A/21A 8MLP
•  FDMC8026S Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 30 V 19A (Ta), 21A (Tc) 2.4W (Ta), 36W (Tc) Surface Mount 8-MLP (3.3x3.3)

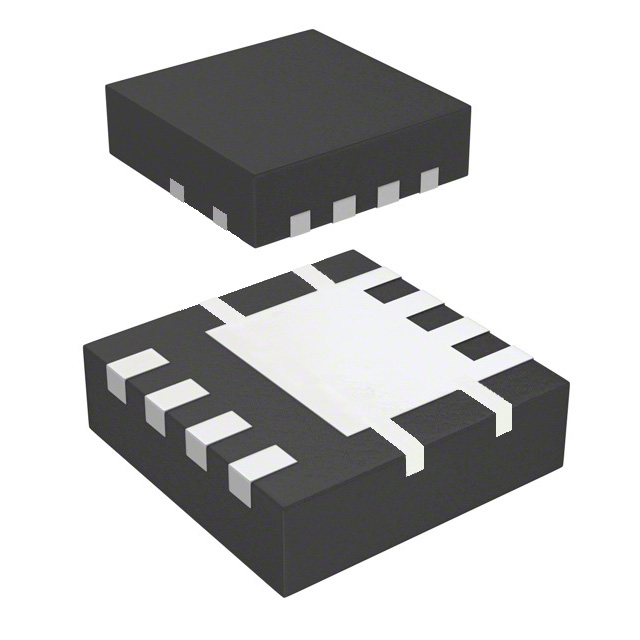

• Package / Case8-PowerWDFN
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C19A (Ta), 21A (Tc)
• Rds On (Max) @ Id, Vgs4.4mOhm @ 19A, 10V
• Power Dissipation (Max)2.4W (Ta), 36W (Tc)
• Vgs(th) (Max) @ Id3V @ 1mA
• Supplier Device Package8-MLP (3.3x3.3)
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs52 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds3165 pF @ 15 V
