Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategorySingle IGBTs
  • PackagesTube
  • Standard Quantity450

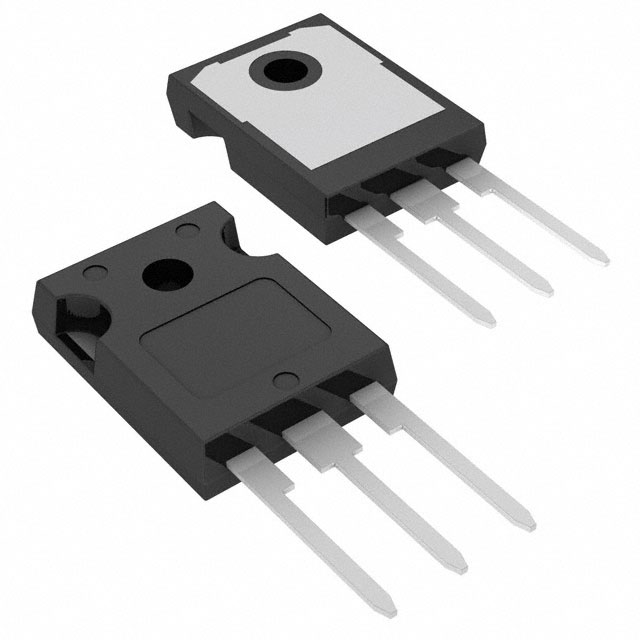

  • DescriptionIGBT 600 V 70 A 290 W Through Hole TO-247-3
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
  • Supplier Device PackageTO-247-3
  • Td (on/off) @ 25°C47ns/170ns
  • Switching Energy1.05mJ (on), 800μJ (off)
  • Test Condition480V, 40A, 3Ohm, 15V
  • Gate Charge250 nC
  • Current - Collector (Ic) (Max)70 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)330 A
  • Power - Max290 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HGTG40N60B3 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
