  • TE Connectivity AMP Connectors
  • 2336490-4
  • Headers, Male Pins

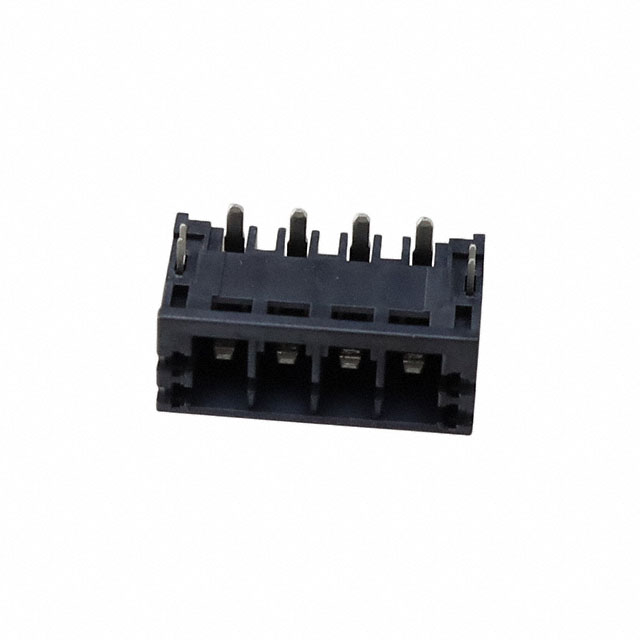

  • D2970 HDR 90 DEGREE 4POSN 1ROW S
  •  2336490-4 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTE Connectivity AMP Connectors
  • CategoryHeaders, Male Pins
  • PackagesBulk
  • Standard Quantity50
  • DescriptionConnector Header Through Hole, Right Angle 4 position 0.197" (5.00mm)
  • FeaturesSolder Retention
  • Connector TypeHeader
  • Voltage Rating300V
  • Current Rating (Amps)Varies by Wire Gauge
  • Mounting TypeThrough Hole, Right Angle
  • Number of Positions4
  • Number of Rows1
  • StyleBoard to Cable/Wire
  • Operating Temperature-55°C ~ 105°C
  • Contact TypeMale Pin
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Contact MaterialCopper Alloy
  • Insulation ColorBlack
  • Pitch - Mating0.197" (5.00mm)
  • Contact Finish - MatingTin
  • Contact Finish Thickness - Mating39.4μin (1.00μm)
  • Contact Finish - PostTin
  • Contact ShapeRectangular
  • Contact Length - Post0.102" (2.60mm)
  • Insulation Height0.346" (8.80mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialLiquid Crystal Polymer (LCP)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2336490-4 from TE Connectivity AMP Connectors only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
