• TSC (Taiwan Semiconductor)

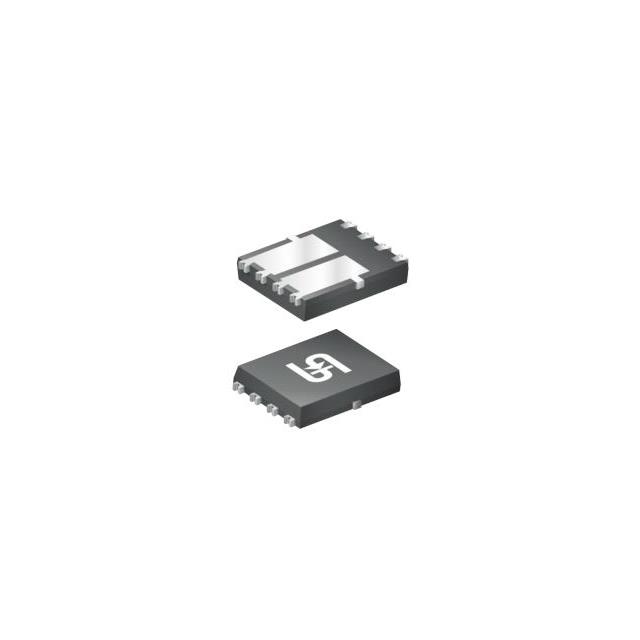

• TSM019NH04CR RLG
• Single FETs, MOSFETs
• 40V, 100A, SINGLE N-CHANNEL POWE
•  TSM019NH04CR RLG Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerTSC (Taiwan Semiconductor)
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity2500
• DescriptionN-Channel 40 V 35A (Ta), 100A (Tc) 150W (Tc) Surface Mount 8-PDFNU (5x6)
• Package / Case8-PowerTDFN
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C35A (Ta), 100A (Tc)
• Rds On (Max) @ Id, Vgs1.9mOhm @ 50A, 10V
• Power Dissipation (Max)150W (Tc)
• Vgs(th) (Max) @ Id3.6V @ 250μA
• Supplier Device Package8-PDFNU (5x6)
• Drive Voltage (Max Rds On, Min Rds On)7V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)40 V
• Gate Charge (Qg) (Max) @ Vgs89 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds6029 pF @ 25 V
