  • Sanyo Semiconductor/onsemi
  • FDP5500-F085
  • Single FETs, MOSFETs

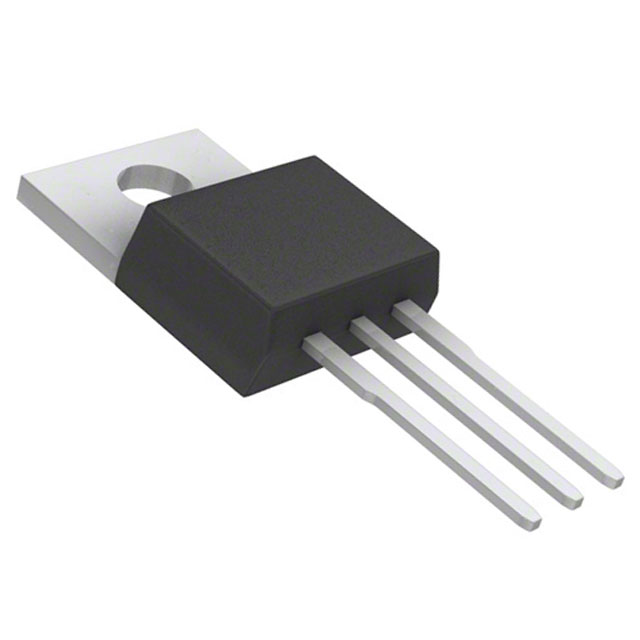

  • MOSFET N-CH 55V 80A TO220-3
  •  FDP5500-F085 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategorySingle FETs, MOSFETs
  • PackagesTube
  • Standard Quantity400
  • DescriptionN-Channel 55 V 80A (Tc) 375W (Tc) Through Hole TO-220-3
  • Package / CaseTO-220-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C80A (Tc)
  • Rds On (Max) @ Id, Vgs7mOhm @ 80A, 10V
  • Power Dissipation (Max)375W (Tc)
  • Vgs(th) (Max) @ Id4V @ 250μA
  • Supplier Device PackageTO-220-3
  • GradeAutomotive
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)55 V
  • Gate Charge (Qg) (Max) @ Vgs269 nC @ 20 V
  • Input Capacitance (Ciss) (Max) @ Vds3565 pF @ 25 V
  • QualificationAEC-Q101
