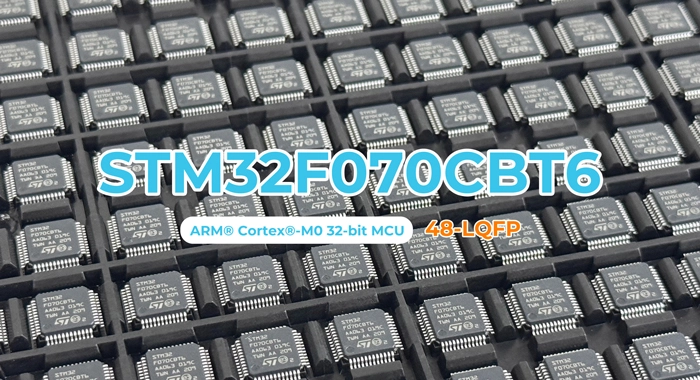

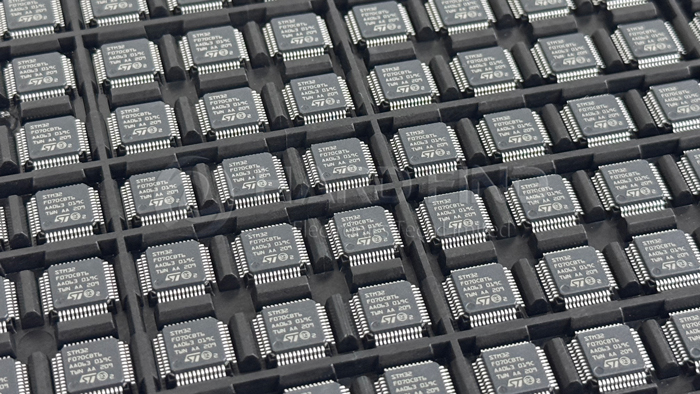

The STM32F070CBT6 from STMicroelectronics is a powerful 32-bit ARM Cortex-M0 microcontroller that combines excellent performance with rich peripherals and low power consumption. Designed for a wide range of embedded applications of consumer electronics, industrial, and automotive fields, etc.
Key Parameters of STM32F070CBT6
The STM32F070CBT6 comes with a robust set of specifications that make it suitable for various embedded applications:
Core Architecture: 32-bit ARM® Cortex®-M0 core
Maximum Clock Frequency: 48MHz
Memory Configuration: 128KB Flash memory and 16KB SRAM
Operating Voltage: 2.4V to 3.6V
Package: LQFP-48 (7mm × 7mm × 1.45mm)
I/O Capability: 37 programmable I/O lines
ADC Module: 12-bit ADC with up to 16 channels
Communication Interfaces: I²C, SPI, UART/USART, USB
Operating Temperature: -40°C to +85°C
Key Features and Highlights
High-Performance CPU
STM32F070CBT6 features the ARM Cortex-M0 core running at up to 48MHz, providing sufficient processing power for most embedded applications while maintaining power efficiency.
Comprehensive Memory Resources
With 128KB of Flash memory and 16KB of SRAM, this microcontroller can handle complex programs and data processing tasks, making it suitable for applications requiring substantial code space and data storage.
Rich Peripheral Set
The STM32F070CBT6 boasts an impressive array of peripherals:
Multiple communication interfaces including two I2C ports, two SPI interfaces, and four USARTs
USB 2.0 full-speed device support for connectivity applications
12-bit ADC with 1.0μs conversion time for precise analog measurements
Advanced control PWM timer and multiple general-purpose timers
DMA controller for efficient data transfer without CPU intervention
Excellent Power Management
The microcontroller supports multiple low-power modes including sleep, stop, and standby modes, enabling the design of energy-efficient systems particularly important for battery-powered applications.
Flexible Clock Management
The device offers comprehensive clock options including 4-32MHz crystal oscillator, 32kHz oscillator for RTC calibration, and internal 8MHz RC oscillator, providing designers with flexibility in system configuration.
STM32F070CBT6 Application
Microcontroller ICs are essential in almost all application fields. So STM32F070CBT6 can be used in automotive, consumer electronics, industrial, medical electronics, etc.
Consumer Electronics
The microcontroller is well-suited for smartphones, tablets, smart speakers, and other consumer devices where its high performance and low power characteristics enable extended battery life while supporting sophisticated functionality.
Industrial Control Systems
In industrial environments, the STM32F070CBT6 finds applications in PLCs (Programmable Logic Controllers), sensors, industrial metering instruments, and automation control systems where its reliability and extensive communication interfaces are particularly valuable.
Smart Home Devices
For the growing smart home market, this MCU can power smart locks, lighting control systems, smart thermostats, and other connected home devices, leveraging its rich I/O capabilities and communication interfaces.
Medical Electronics
The STM32F070CBT6's stability and low power consumption make it suitable for medical devices such as blood glucose meters and blood pressure monitors that require reliable long-term operation.
Automotive Electronics
In automotive applications, the microcontroller can be used in sensor interfaces, motor control systems, and various in-vehicle electronic control units, benefiting from its robust design and temperature operating range.
Similar Products
While the STM32F070CBT6 offers an excellent feature set, designers may consider these alternative microcontrollers depending on specific requirements:
Other STM32F0 Series MCUs: The STM32F0 family includes various devices with different memory configurations, package options, and peripheral combinations that may better suit specific application needs.
STM32F1 Series: For applications requiring higher performance while maintaining similar programming models.
Other ARM Cortex-M0/M0+ MCUs: Competing devices from other manufacturers such as NXP's LPC800 series or Microchip's SAMD series.
When selecting alternatives, designers should carefully compare key parameters including CPU performance, memory size, power consumption, peripheral mix, and cost to ensure the chosen device meets all application requirements.
