Connectors are the critical component that ensures power and data flow seamlessly between different parts of a system. Choosing the right connector is paramount to the performance, reliability, and manufacturability of any electronic product. This article is about the Molex 0512961833 connector: specifications, unique features, diverse applications, and how it compares to similar products in the market.
Molex 0512961833 Product Introduction
The Molex 0512961833 is an FFC/FPC connector belonging to the Easy-On 51296 series. It features surface mount technology (SMT) and a right-angle design, specifically designed for connecting flexible flat cables (FFC) or flexible printed circuits (FPC). This connector offers 18 pin positions with a pin pitch of 0.5 mm, meeting the needs of high-density circuit designs.
This connector features a bottom contact design and is suitable for 0.30 mm thick FFC/FPC cables. Its zero insertion force (ZIF) characteristic ensures a smoother connection process and reduces the risk of cable damage. The connector operates over a wide temperature range, from -40°C to 85°C, enabling it to withstand various harsh environmental conditions. Its primary target markets include consumer electronics, automotive electronics, industrial control, and medical devices, and it is particularly suitable for space-constrained portable devices.
Key Features and Technical Specifications
One of the most significant features of the 0512961833 connector is the Zero Insertion Force (ZIF) design. Traditional connectors require force to insert cables, which can easily lead to pin bending or cable damage. The ZIF design, through a unique lever mechanism, allows for easy cable insertion and subsequent locking, significantly reducing installation difficulty, improving production efficiency, and minimizing potential damage to the connector and cable during assembly.
As electronic devices become increasingly thinner and lighter, the size of internal components is becoming increasingly critical. This connector's low-profile design (only 1.30mm onboard height) and 0.5mm pin pitch make it ideal for space-constrained applications. Whether in smartphones, tablets, or wearable devices, its compact nature allows for optimized internal space layout.
The connector uses a liquid crystal polymer (LCP) shell, a material that not only has high mechanical strength but also excellent thermal stability. UL94 V-0 flame-retardant certification ensures device safety. Furthermore, the fixed solder tail design enhances the mechanical strength of the solder joints, maintaining a reliable connection even under vibration or impact.
The connector also employs a flip-lock mechanism to ensure a secure and reliable connection. The cable ends feature a straight, tapered design for easy insertion. These characteristics collectively ensure the connector's stable performance during long-term use.
Primary Applications
Molex 0512961833 connectors, with their stable performance and compact design, are widely used in multiple fields.
Consumer Electronics: Widely used in devices such as smartphones, tablets, and digital cameras, primarily for connecting displays, touchscreens, and camera modules. Their high-density design and reliable connections support the trend towards thinner and lighter consumer electronics.
Industrial Automation Equipment: Enables signal transmission in Programmable Logic Controllers (PLCs), sensors, and industrial control panels. Their wide operating temperature range (-40°C to 85°C) adapts to the harsh requirements of industrial environments.
Automotive Electronic Systems: Used in in-vehicle infotainment systems, dashboards, and control modules. Their reliable connectivity meets the high stability requirements of automotive electronics.
Medical Electronic Equipment: In portable medical devices and handheld diagnostic instruments, their small size and high reliability meet the stringent safety standards of the medical field.
Procurement and Alternatives Guide
For designers considering using the 0512961833 connector, please note the following procurement information:

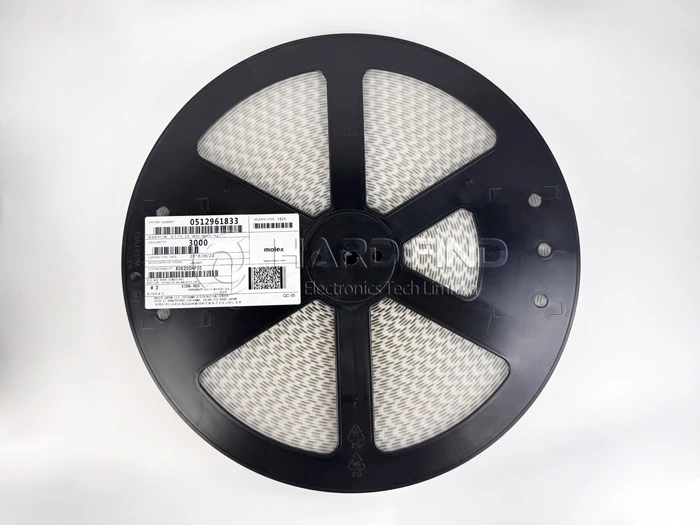

Currently, the availability of this product varies across different electronic components distributors. Large distributors mark it as "discontinued" or "temporarily limited," but other specialized distributors may still have stock available. Hard Find Electronics Tech can source for you. Standard packaging is in tape and reel form, with 3000 pieces per reel.
To find alternative models, consider the following:
Check the Molex official catalog for compatible models within the 51296 series.
Use a component search platform, filtering by key parameters such as 0.5mm pitch, 18 pins, and right-angle SMT.
Consult the technical support of a specialized distributor for alternative recommendations.
Conclusion
Molex 0512961833 FFC/FPC connectors, with their sophisticated design, reliable performance, and compact size, are a superior choice for interconnect solutions in modern electronic devices. Their zero-insertion-force design, robust construction, and broad environmental adaptability enable them to meet the demanding requirements of a variety of applications. As electronic devices continue to trend towards miniaturization and high density, these high-performance connectors will continue to play a crucial role in enabling innovative designs.
For design engineers, understanding the detailed specifications and characteristics of connectors and selecting the right one based on actual application needs is a key factor in ensuring product success. By leveraging the advantages of the 0512961833 connector, the performance and reliability of electronic products can be effectively improved, development cycles shortened, and a better user experience delivered to end users.
