The demands for power consumption and space in electronic devices are becoming increasingly stringent, requiring Field-Programmable Gate Arrays (FPGAs) to balance low power consumption, small size, and high performance. Microchip Technology's AGLN250V2-VQG100I FPGA is an excellent solution addressing this need. Part of the IGLOO nano series, it stands out for its superior low-power consumption and compact design.
AGLN250V2-VQG100I Product Overview

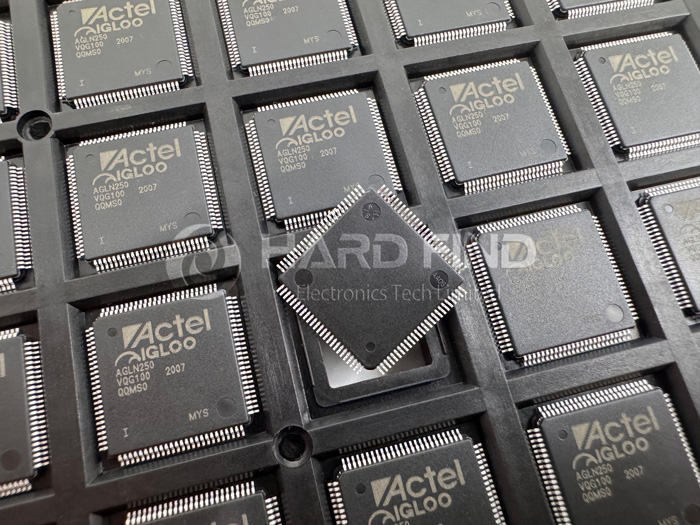

The AGLN250V2-VQG100I is an FPGA product based on the IGLOO nano architecture. It uses a 100-pin VQFP package (14 x 14 mm), making it ideal for space-constrained applications. The device operates over a junction temperature range of -40°C to 100°C, enabling it to withstand various harsh environments. Its core voltage requirement is only 1.14V to 1.575V, significantly lower than traditional FPGA products.
Technical Features
1. Logic Resources and Storage Capacity
The AGLN250V2-VQG100I boasts 6144 logic cells and 250,000 system gates. These logic resources provide a solid foundation for implementing complex logic functions. The device integrates 36,864 bits of RAM, equivalent to 36 Kbits of storage capacity, enabling efficient data caching and storage tasks.
2. Interfaces and I/O Capabilities
This FPGA provides 68 user I/O interfaces, supporting multiple voltage standards and communication protocols. Its rich external interfaces allow for easy connection to various peripheral devices, such as sensors, memory, and displays, providing great flexibility for system integration.
3. Low Power Consumption Technology
As a representative of the IGLOO nano series, the AGLN250V2-VQG100I employs various energy-saving technologies, significantly reducing static and dynamic power consumption. This makes it particularly suitable for battery-powered portable devices, effectively extending device battery life.
The AGLN250V2-VQG100I achieves an optimal balance between power consumption, size, and cost. Compared to similar products, it significantly reduces power consumption and size without sacrificing performance. This allows end products to maintain competitiveness while achieving longer battery life and a more compact design.
Application Areas
The AGLN250V2-VQG100I's balanced resource allocation and low power consumption characteristics make it widely applicable across various fields:
Portable Medical Devices: Including handheld monitors, portable diagnostic devices, etc., its low power consumption ensures stable operation for extended periods.
Industrial Control Systems: Its wide operating temperature range (-40°C to 100°C) allows it to adapt to various industrial environments.
Communication Equipment: It can be used to implement various interface protocol conversions and signal processing functions.
Consumer Electronics: Meeting the stringent size and power consumption requirements of modern consumer electronics.
Development Support
Microchip offers a complete development ecosystem for the AGLN250V2-VQG100I. The officially recommended Libero integrated design environment provides a complete toolchain from design input, simulation, synthesis, to placement and routing. In addition, the dedicated IGLOO nano starter kit is available, which includes a development board with the AGLN250V2 device, a programming stick, a user guide, and design examples, significantly lowering the development threshold.
Conclusion
The AGLN250V2-VQG100I FPGA, with its excellent low-power characteristics, moderate logic resources, and small package size, has become an ideal choice for many embedded system designs. Whether in the medical, industrial, or consumer electronics fields, it provides designers with highly flexible programmability while meeting stringent power and space requirements, making it a highly competitive FPGA product in today's market.
